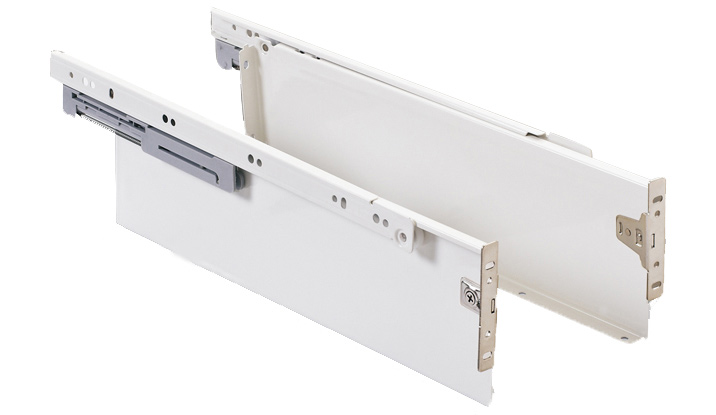

DS-131S缓冲侧板
产品介绍
自关类侧板滑轨双重限位止动
承重25kg
料厚（SPCC）：0.9~1.1mm
规格：10"~24"
表面处理：根据客户需要喷涂

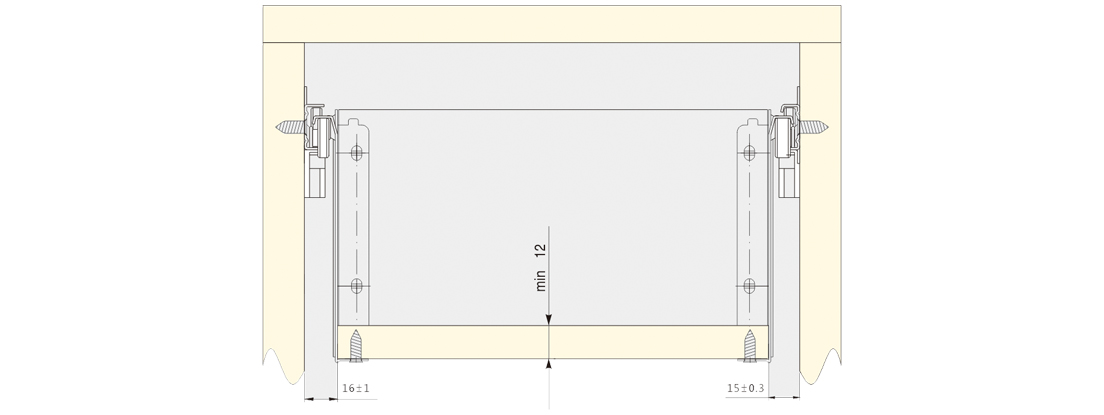

安装尺寸：31±1
产品特色：DR/DL尾部安装有快装调节器可上下调节2mm
CR/CL上装有缓冲器具有良好缓冲自关功能
| 型号 | 54# | 86# | 118# |
尺寸规格 | 10"250mm | 10"250mm | 10"250mm |
| 11"270mm | 11"270mm | 11"270mm | |
| 12"300mm | 12"300mm | 12"300mm | |
| 14"350mm | 14"350mm | 14"350mm | |
| 16"400mm | 16"400mm | 16"400mm | |
| 18"450mm | 18"450mm | 18"450mm | |
| 20"500mm | 20"500mm | 20"500mm | |
| 22"550mm | 22"550mm | 22"550mm | |
| 24"600mm | 24"600mm | 24"600mm |
| 型号 | 150# | 200# |
| 尺寸规格 | 10"250mm | 10"250mm |
| 11"270mm | 11"270mm | |
| 12"300mm | 12"300mm | |
| 14"350mm | 14"350mm | |
| 16"400mm | 16"400mm | |
| 18"450mm | 18"450mm | |
| 20"500mm | 20"500mm | |
| 22"550mm | 22"550mm | |
| 24"600mm | 24"600mm |
