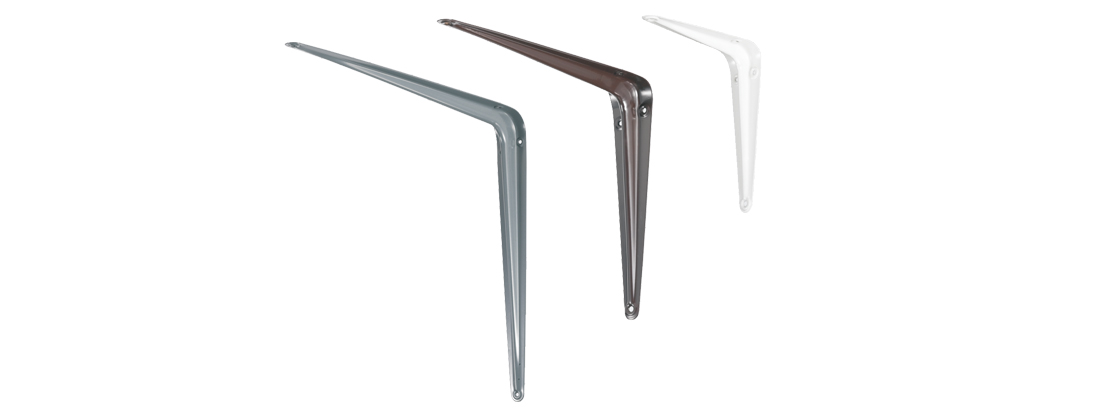

MB-301三角支架
产品介绍
斜厚（SPCC）：0.7~0.9mm型号：0#~8#
表面处理：根据客户需求喷涂

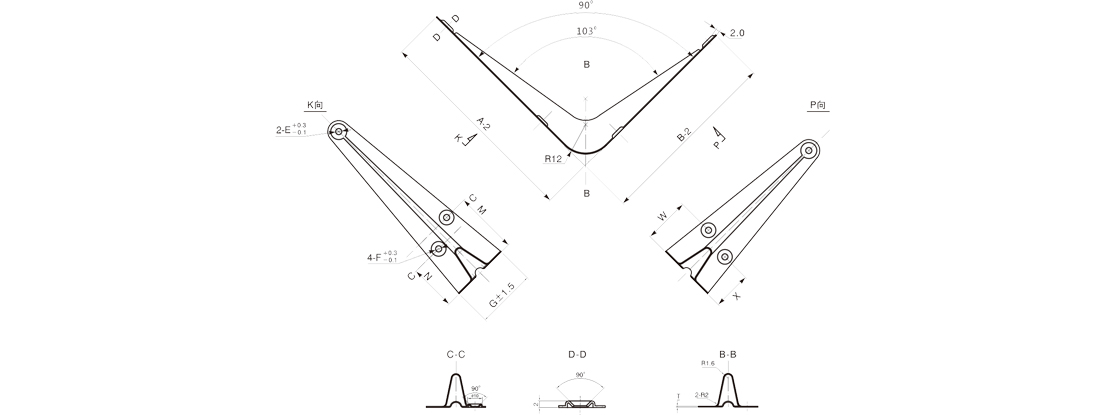

产品型号 | 规格 | A | B | C | D | F |
| 0# | 100*75 | 100 | 75 | 31 | ∅4.0 | ∅3.0 |
| 1# | 125*100 | 125 | 100 | 35 | ∅4.5 | ∅3.5 |
| 2# | 150*125 | 150 | 125 | 39 | ∅4.5 | ∅3.5 |
| 3# | 450 | 450 | 160 | 160 | ∅4.5 | ∅4.0 |
| 4# | 250*200 | 250 | 200 | 43 | ∅5.0 | ∅4.0 |
| 5# | 300*250 | 300 | 250 | 49 | ∅5.0 | ∅5.0 |
| 6# | 350*300 | 350 | 300 | 50 | ∅5.0 | ∅5.0 |
| 7# | 400*350 | 400 | 350 | 52.5 | ∅5.0 | ∅5.0 |
| 8# | 450*400 | 450 | 400 | 52.5 | ∅5.0 | ∅5.0 |
| 产品型号 | T | M | N | W | X | 承重 |
| 0# | 0.7 | 20 | 23 | 20 | 16 | 8.7 |
| 1# | 0.7 | 18 | 22 | 24 | 19 | 13.1 |
| 2# | 0.7 | 26 | 28 | 24 | 20 | 17.6 |
| 3# | 0.7 | 28 | 35 | 29 | 23 | 22 |
| 4# | 0.8 | 36 | 29 | 33 | 25 | 26.4 |
| 5# | 0.9 | 43 | 36 | 35 | 40 | 30.8 |
| 6# | 0.9 | 52 | 38 | 37 | 47 | 35.2 |
| 7# | 0.9 | 52 | 42 | 42 | 52 | 39.6 |
| 8# | 0.9 | 52 | 42 | 42 | 52 | 45 |
